New from JJB-Electronics comes the first of our new Artist series, THE
PRESTIGE 330! Our new line of pickups are constructed with the finest
components available today! In fact, they are the same components that
are used by the "big-box" companies that sell their systems for more
than twice as much! This system is the same exact configuration that  is
sold for $130.00 by a very well known company. The first release from our
new Artist Series, The Prestige - 330.

These are built using very high quality 20mm piezo's. We can now offer to
substitute these for 15mm piezo's upon request. Please select the
desired size from the drop-down menu above. This configuration is
designed for guitars which do not provide enough space on the
bridgeplate to allow for the bigger sized piezo's. Both systems have a
very similar tone but the smaller system provides a little less output than
the bigger sized system. In many cases this slight difference is negated
by the higher resonance of a smaller bridgeplate. These can be used
with or without a preamp with fantastic results. These are ideal if you
desire a less defined bass and mid-range output. They are designed for
more resonant guitars or ones with thinner soundboards.

It utilizes a triple surface transducer design. This results in a very wide
frequency range and very natural reproduction of sound. The three-
piezo configuration offers a few advantages over single and double
piezo systems. Having three piezo’s affords you the opportunity to place
them at three different points on the soundboard thus resulting in an
improved dynamic range due to the fact that they transmit the resonation
found at more than one point. These special surface transducers are
under less pressure than under saddle pickups thus decreasing the
likelihood of them transmitting a percussive or harsh sound. Each piezo
is designed to pick up a string pair as well as the resonation found in a
significant amount of the soundboard. These do not "fade" or distort at
high volume or with high-power systems. The highs are crystal clear
while the lows are, well, what they should be, low! This pickup
configuration is offered in several high end guitars. All of our products
feature quality components and construction. These utilize a premium
quality Switchcraft 1/4” nickel plated mono end-pin jack.. This system will
give you a very “clean” install for those who do not want to compromise
the integrity of their beloved instrument. The end-pin jack also doubles
as a strap button. These will work great in a variety of instruments.
Mandolins, ukulele’s, bass guitars, banjo’s, violins, dobro’s, dulcimers,
stomp boxes, etc. The possibilities are endless! These, like all of our
systems, can be installed in about 15 minutes! They are a very simple and
inexpensive means of turning your acoustic instruments in to acoustic
electric.
Installation;

Tools you will need;
A drill
A 1/2 drill bit

Installation of the endpin jack:
1.Drill or widen the endpin hole to 1/2" using protective tape to cover the area around the hole. This helps to prevent chips and
scratches.
2.Unscrew the endpin jack's strap mount knob
3.Remove the nut and washer.
4.Find out the thickness of your end block and set the nut on the cap accordingly. Once in place, screw the cap against it to
secure the nut.
5.Insert the jack from the inside into the endpin hole.
TIP: a chopstick or something similar helps to get a hold of the jack and pull it through the hole.
6.Attach outside washer and nut and tighten. Attach the end knob.

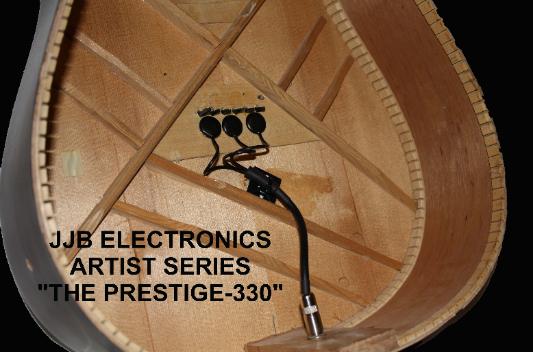

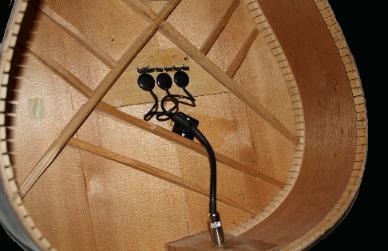

Transducer installation –
It does not matter in which position you install any of the 3 pickups. The installation spots are identical. Each pickup should be
placed between two of the bridge pins. (see diagram)
Once you determine where you would like to mount the piezo's, attach them
to the inside of the guitar top by placing a drop of super-glue on each piezo (one at a time) and hold it in place for about 45 seconds.
The installation point that will result in the most amount of gain is directly under the saddle on the bridgeplate.

We cannot be responsible for guitar damage caused by installation.
Several of you may be wondering, "so how does it sound". Please click
here to check out our new customer-submitted sound clip page for a
demo.
